| 브랜드 이름: | OEM/ODM |
| 모델 번호: | BE-X15 |
| MOQ: | 1 |
| 가격: | US$1250/PCS |
| Delivery Time: | 5-25 |
| 지불 조건: | T/T |

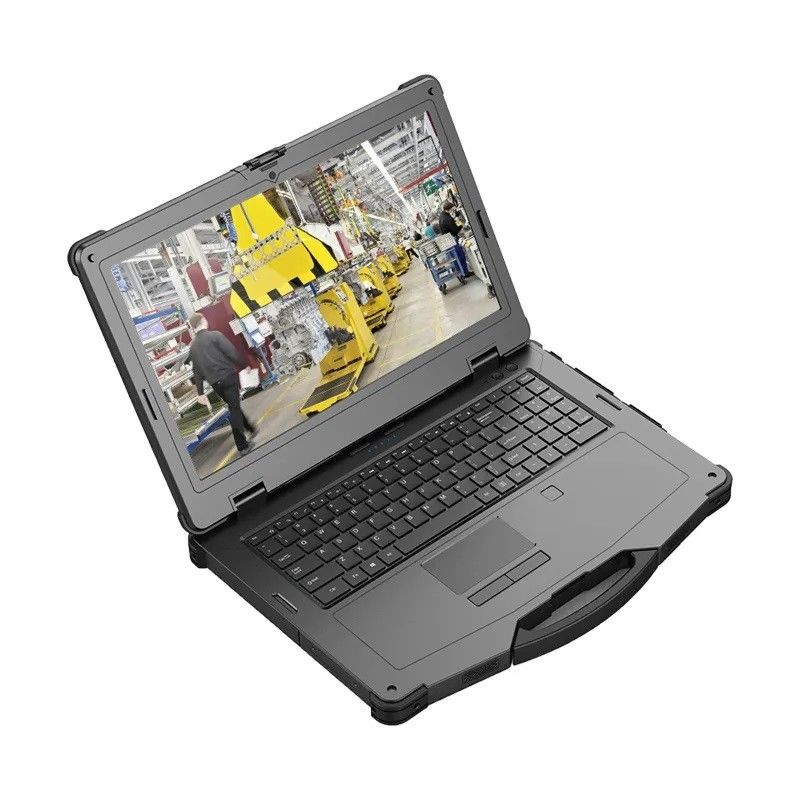

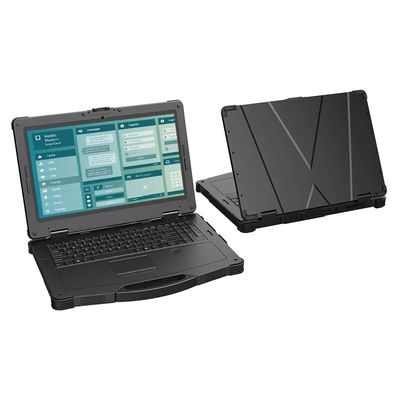

| Product Form | 15 inch Full-rugged Notebook+IP65 |
| Material | Plastic material |
| Dimension | 407*305.8*45.5mm(Host) |
| Weight | 3.3kg |
| Product Color | Black |
| CPU | Intel I5 1135G7 4C/8T 2.4-4.2GHZ Intel I7 1165G7 4C/8T 2.8-4.7GHZ |
| GPU | Intel Iris Xe Graphics |
| DDR4 onboard | 8GB/16GB/32GB |
| SSD | 256GB/512GB/1TB |
| Mechanical Hard Disk | Optional: HDD |
| TPM | Built-in, TPM2.0 SLB9670VQ2.0 |
| Hall Wwitch | Hall |
| Operating System | windows 10(windows 11 optional) |
| SCreen | 15.6" 16:9 1920*1080 750cd/Nits |
| Touch Pannel | Optional, 10 point capacitive screen, G+G, Corning gorilla hardness above 7H, scratch resistant |
| Camera | Front 2.0MP |
| Buttons | PowerX1 Reset X1 (Pinhole key, One button reset) P Key X1 (One button off screen or on) |
| Speaker | 8Ω/1W X2 |
| Microphone | Internal Digital MIC X2 |
| Battery (Built-in) | Build in Lithium-ion polymer battery 7.4V/1750mAh 0.5hours ( 50% volume sounds, 200 nits brightness, 720P HD video display by default ) |
| Battery (Hot Swap) | Removable Lithium-ion polymer battery 7.4V/6300mAh 6.5hours ( 50% volume sounds, 50% screen brightness, 1080P HD video display by default ) |
| WIFI | WIFI 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax |
| Bluetooth | BT5.1 (BLE) class1 Transmited distance:10m |
| 2G/3G/4G | Optional, M.2 LTE-FDD: B1/3/5/7/8/20 LTE-TDD: B40 WCDMA: B1/5/8 GSM: 900/1800 |
| 5G | Optional, M.2 5G NR:n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/ n66/n71/n77/n78/n79 LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD:B34/B38/B39/B40/B41/B42/B43/B48 LAA:B46(2 x 2 MIMO) WCDMA:B1/B2/B3/B4/B5/B6/B8/B19 GNSS:GPS/GLONASS/ BeiDou(Compass)/Galileo |
| GPS | U-blox NEO-7 support satellite: GPS, Capture sensitivity: - 160 dBm, Cold start time: <50 seconds, hot start time: <28 seconds, frequency: 0.25 Hz, 10 MHz (configurable) Optional, GPS+Beidou, U-blox NE0-M8N-0 |
| NFC | Optional,NXP300 |
| Fingerprint | Built-in, SPI fingerprint (boot login) X1 |
| Interface | USB 2.0 x1 |
| USB 3.0 x3 | |
| 3.5mm standard earphone jack x1 | |
| HDMI *1(type-A) | |
| SD Card x1 | |
| SIM Cardx1 | |
| DC 19V 3.42A Power connector x1 | |
| DB9 (RS232) x1 | |
| RJ45 (10/100/1000Mbps) x2 | |
| 5PIN Pogo Pin x1 (USB interface definition) | |
| Anti theft lock hole x1 | |
| Heat dissipation air outlet (right) x1 | |
| Left docking station, optional custom adapter PCIE X4 slot or HDD x1 | |
| Power Indicator | x1 The power on light is always blue, and the power off light is off |
| Baterry Indicator | x1 (Red and green) Charging red, full of green, low battery red light flashing, discharge does not light |
| HDD LED | x1 |
| Case Key Lock | x1 |
| 3G/4G Indicator | When 3G/4G is turned on, the light turns blue, and when 3G/4G is turned off, the light turns off |
| Adapter | AC100V~240V, Output 19V3.42A/65W has passed CE certification Optional: EU, US |
| Rugged Features | MIL-STD-810G: 1.22m drop |
| Working temperature: -20 °C to 60 °C | |
| Storage temperature: -30 °C to 70 °C | |
| Humidity: 95% Non-Condensing | |
| Certification | IP65 |
| CE, RoHS, CCC, Optional FCC | |
| MIL-STD-810G |
|
